SafeMezz360™
SMZ

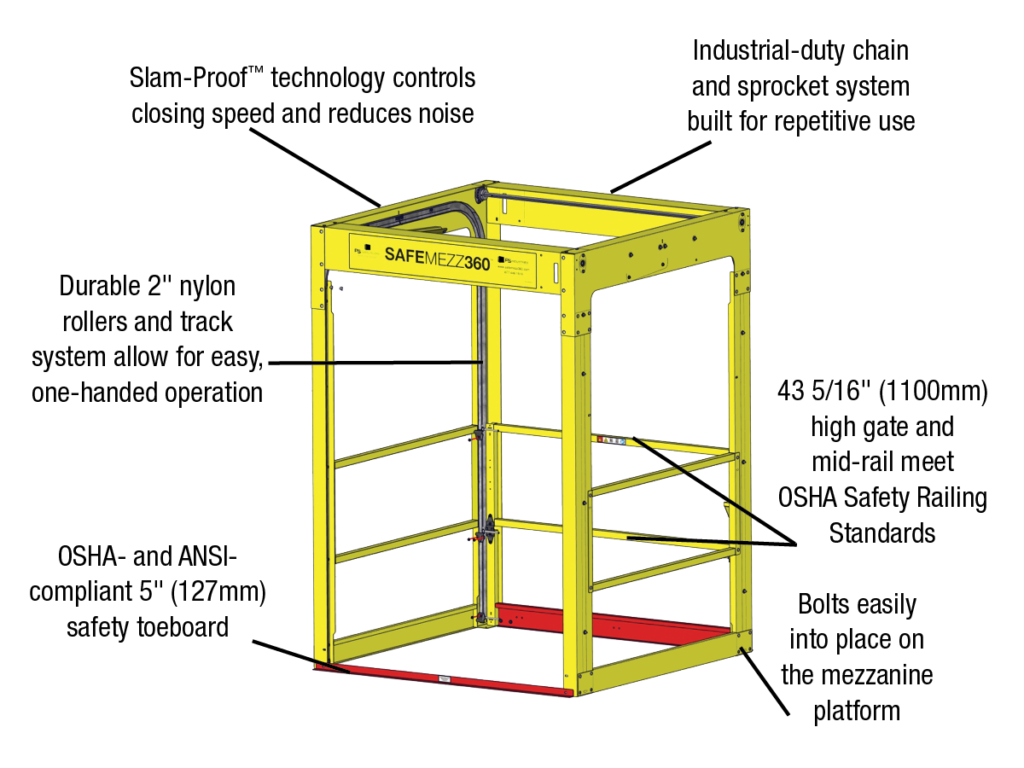

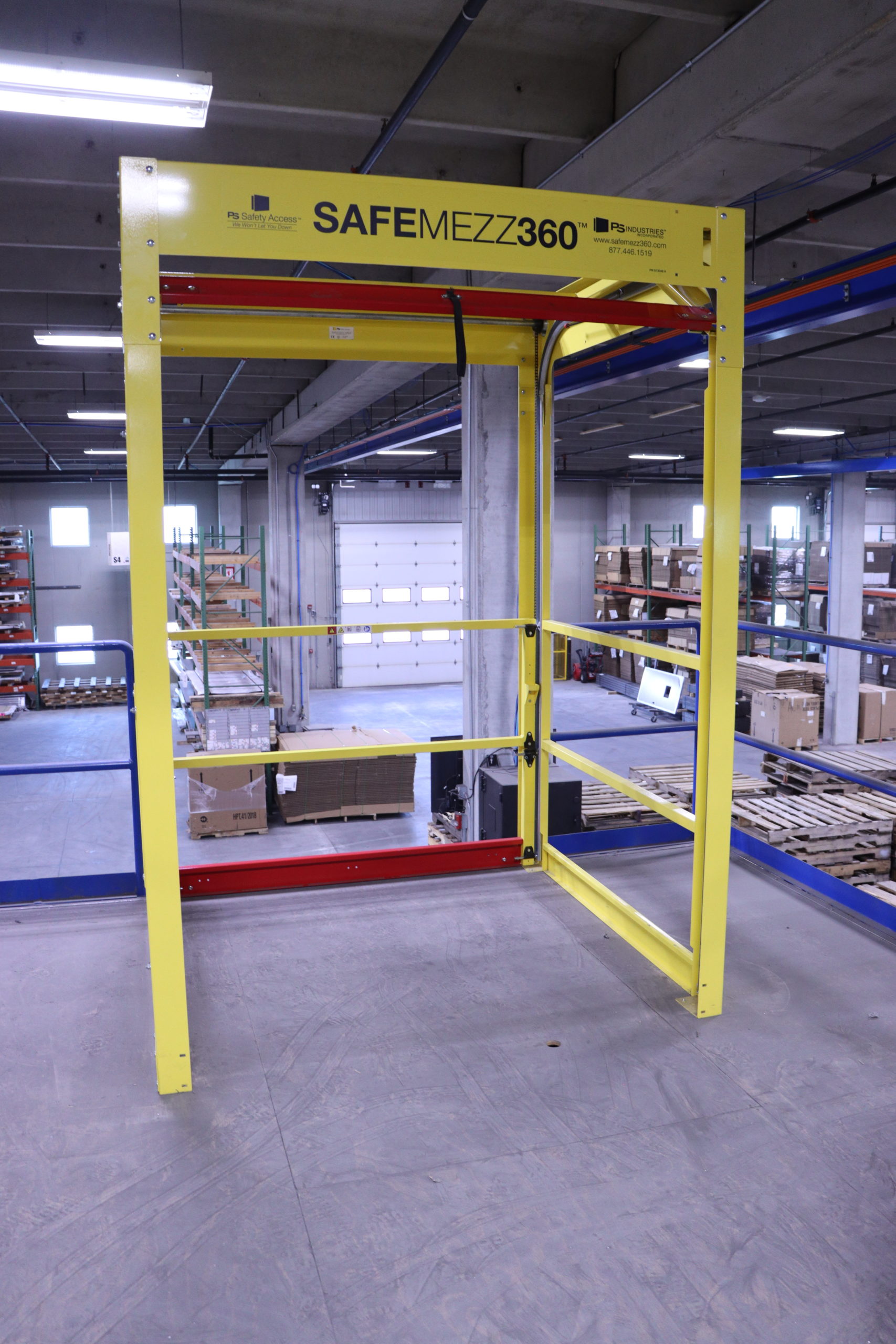

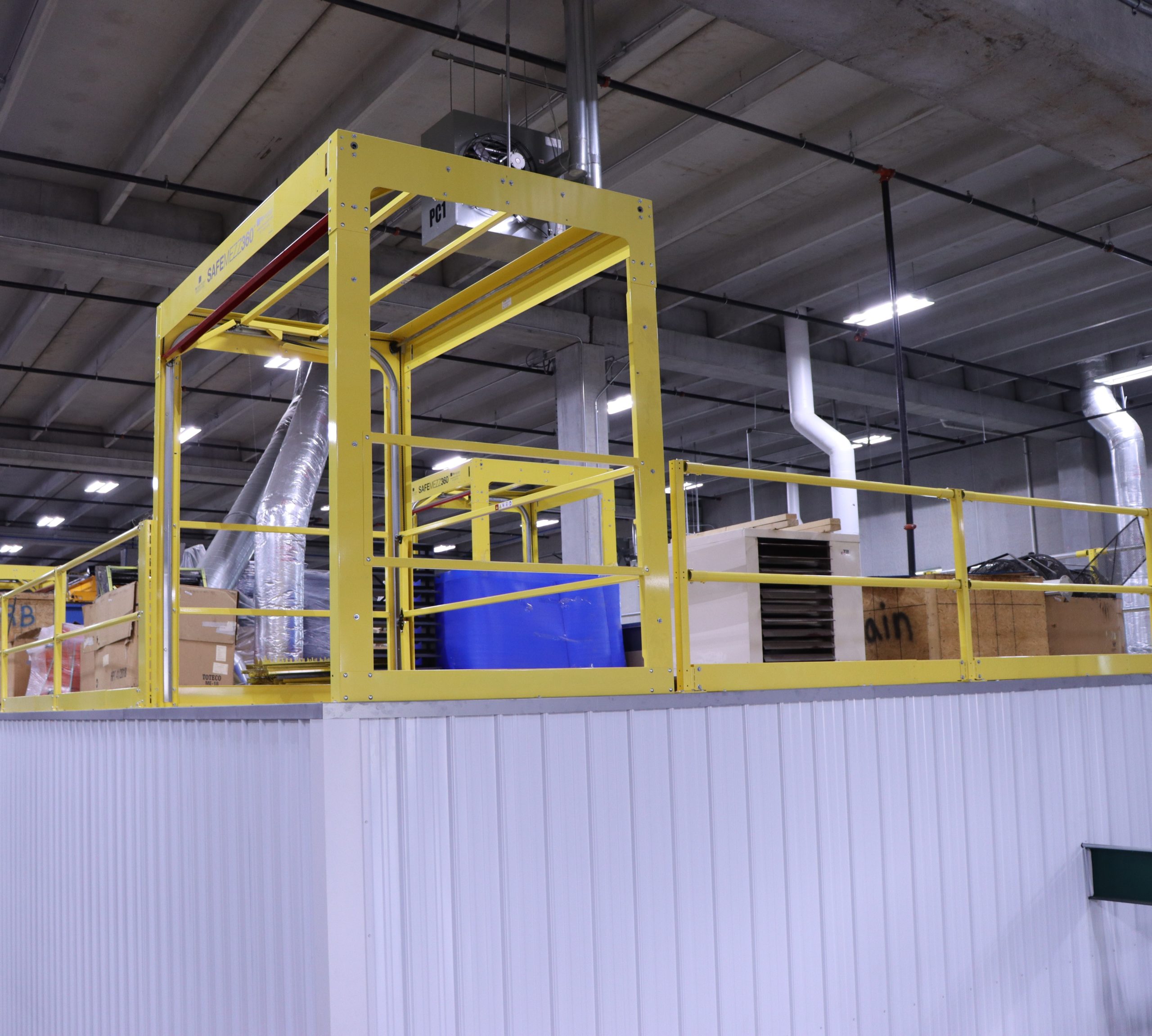

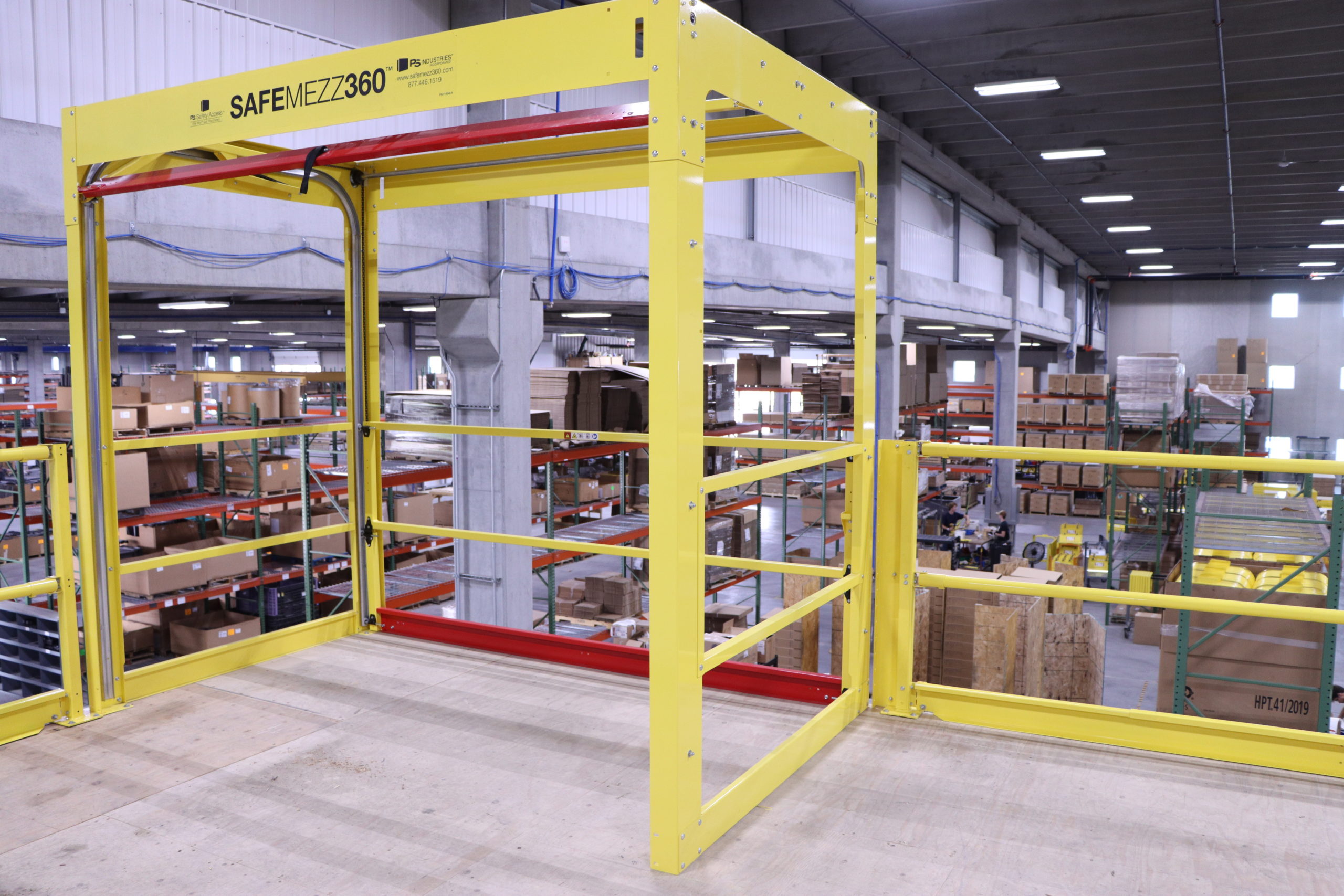

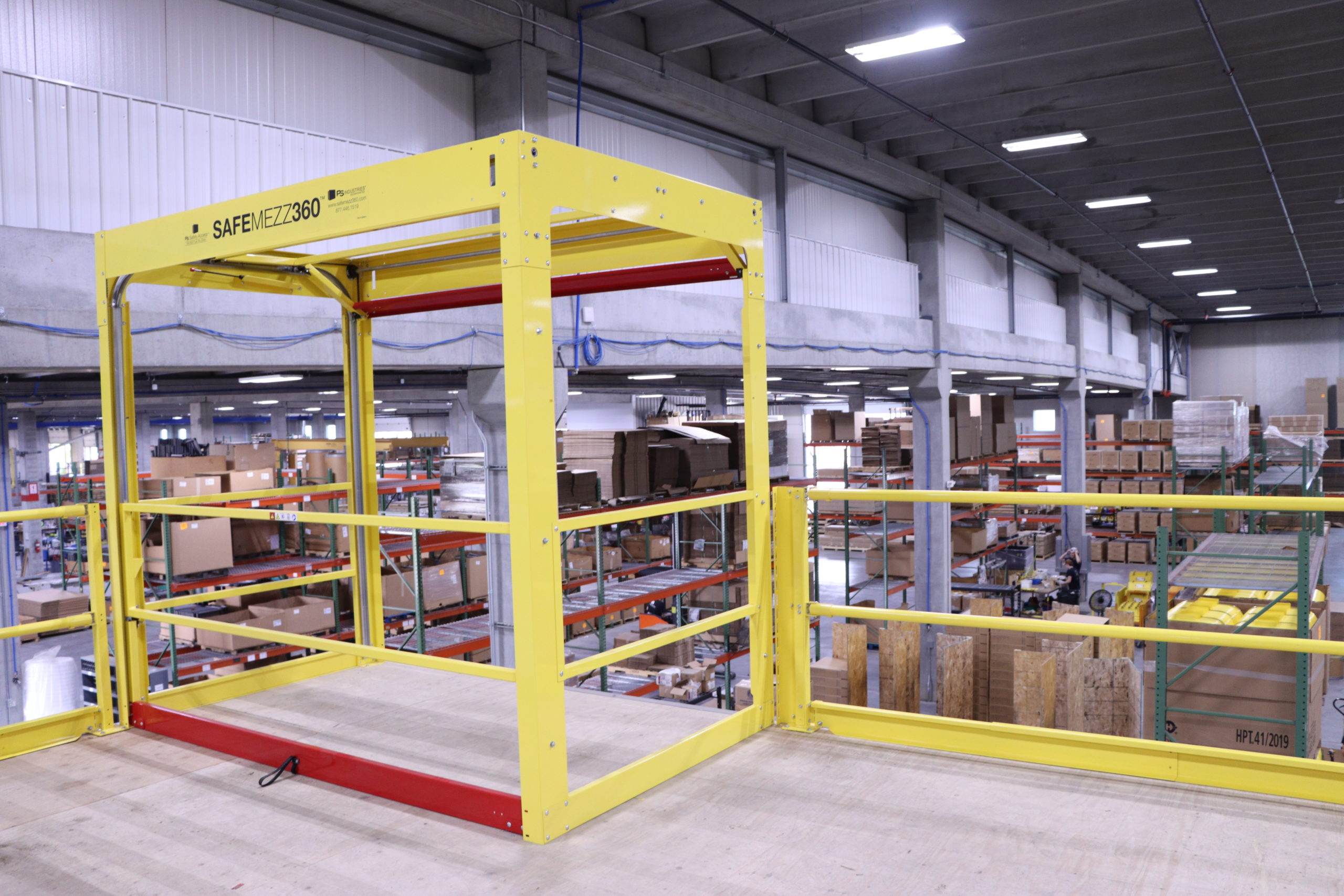

The SafeMezz360™ is a dual gate system that always keeps a safety gate between an edge and your employee during the important, but potentially hazardous, job of loading and unloading forklifted materials to and from your mezzanine. It meets the most stringent fall protection standards and is arguably the safest material handling gate on the market. Its Slam-Proof® technology controls speed, reduces noise and provides safety to the operator while the gate is closing. SafeMezz360 is available in single or double pallet widths.
Code Compliant: Meets OSHA 1910.29; ANSI Standards including the stringent ANSI MH28.3-2009 Section 6.4.3 and ANSI 1264.1-2017 requirements; Canadian COHS SOR/94-263, s. 8(F) and SOR/2000-374, s. 2; ISO 14122-3:2016; and is CE Marked
*Ships in 3 days or less; limited to stock on hand
To download product information, see the black tabs located in the upper right corner (desktop) or bottom (mobile) of your screen.
Custom Gate Success Story

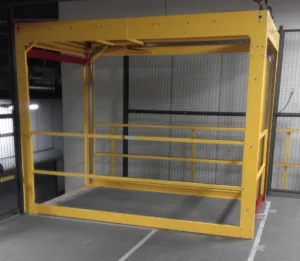

An aerospace manufacturing company in Ohio approached PS Safety Access™ for help with a unique application. They needed a SafeMezz360™, but with a 76-inch clear opening width and a 120-inch clear opening depth due to the size of many of the pallets they were loading onto the second level of their facility. The PS Safety Access design team developed a custom gate solution, and we were able to manufacture this unit and still maintain OSHA and ANSI compliance. It was just what the company needed, and they are extremely happy with their new custom SafeMezz360. If your project calls for a custom solution, contact us or call 877-446-1519.
SAFEMEZZ360 QUICK FACTS
SAFEMEZZ360 BENEFITS
- Counter-balanced gate system provides 360 degrees of mezzanine ledge protection
- Slam-Proof® – a unique damping system provides safety to the operator while the gate is closing, controlling speed, reducing noise and adding life to the gate – all while being mounted high enough to prevent it from becoming damaged
- Designed to meet OSHA and ANSI railing standards including-ANSI required 5-inch (127mm) safety toeboard, preventing anything and anyone from falling off the mezzanine edge
- Easy, one-handed operation – gate opens and closes smoothly on 2” nylon rollers and track system
Code Compliant: meets OSHA 1910.29; ANSI Standards including the stringent ANSI MH28.3-2009 Section 6.4.3 and ANSI 1264.1-2017 requirements; Canadian COHS SOR/94-263, s. 8(F) and SOR/2000-374, s. 2; ISO 14122-3:2016; and is CE Marked
- Ships in 3 days or less; limited to stock on hand
Frequently Asked Questions
Meets ANSI standards including the stringent ANSI MH28.3 Section 6.4.3 requirement that states: “A work platform shall be designed such that the elevated surface is protected by the guards at all times. Gates that swing open, slide open or lift out, leaving an unprotected opening in the guarding, are not acceptable.”
Includes ANSI required 4-inch safety toeboard, preventing anything and anyone from falling off the mezzanine edge
Meets OSHA Safety Railing Standards
