EdgeHalt® Ladder Safety Gates
EdgeHalt® Ladder Safety Gate
EdgeHalt® Posi-Stop Ladder Safety Gate
EdgeHalt® Adjustable Safety Gate
EdgeHalt® Full Height Ladder Safety Gate
EdgeHalt® Aluminum Ladder Safety Gate
Fits Openings // Part Number:
15”-20” // LSG-1520
20”-30” // LSG-2030
30”-40” // LSG-3040
40”-50” // LSG-4050
Fits Openings // Part Number:
Single:
15”-20” // LSGPS-1520
20”-30” // LSGPS-2030
Double:
20”-30” // LSGPSD-2030
30”-40” // LSGPSD-3040
40”-60” // LSGPSD-4060
Fits Openings // Part Number:
18”-36” // ASG-1836-PCY
Fits Openings // Part Number:
16-3/4” to 20-1/2” // LSGF-18
19-3/4” to 23-1/2” // LSGF-21
22-3/4” to 26-1/2” // LSGF-24
25-3/4” to 29-1/2” // LSGF-27
28-3/4” to 32-1/2” // LSGF-30
31-3/4” to 35-1/2” // LSGF-33
34-3/4” to 38-1/2” // LSGF-36
Fits Openings // Part Number:
16-3/4” to 20-1/2” // LSG-18
19-3/4” to 23-1/2” // LSG-21
22-3/4” to 26-1/2” // LSG-24
25-3/4” to 29-1/2” // LSG-27
28-3/4” to 32-1/2” // LSG-30
31-3/4” to 35-1/2” // LSG-33
34-3/4” to 38-1/2” // LSG-36
Available Finishes:
Powder Coat Yellow (PCY)
Hot-Dipped Galvanized (GAL)
304 Stainless Steel Seal Welded (304SW)
Available Finishes:
Powder Coat Yellow (PCY)
Hot-Dipped Galvanized (GAL)
304 Stainless Steel Seal Welded (304SW)
Available Finishes:
Powder Coat Yellow (PCY)
Zinc
Available Finishes:
Powder Coat Yellow (PCY)
Hot-Dipped Galvanized (GAL)
304 Stainless Steel (304)
Available Finishes:
Aluminum
Installation:
Includes standard mounting hardware for round pipe (up to 2" O.D.) or square tubing (up to 2" x 2" O.D.). Gates can also be match-drilled directly to existing wall or railing system.
Installation:
Includes standard mounting hardware for round pipe (up to 2" O.D.) or square tubing (up to 2" x 2" O.D.). Gates can also be match-drilled directly to existing wall or railing system.
Installation:
Ships fully assembled, no sawing or cutting required.
Installation:
Ships fully assembled, including standard mounting hardware for round pipe (up to 2" O.D.) or square tubing (up to 1.5" x 1.5" O.D.). Gates can also be match-drilled directly to existing wall or railing system.
Installation:
Ships fully assembled, including standard mounting hardware for round pipe (up to 2" O.D.) or square tubing (up to 1.5" x 1.5" O.D.). Gates can also be match-drilled directly to existing wall or railing system.
Safety Standards:
Tested to the OSHA, ANSI, and Canadian COHS standards, and exceeds the loading requirement by two times (OSHA 1910.29; OSHA 1910.28; ANSI A1264.1-2017; ANSI A14.3; Canada COHS SOR-86-304 Part II)
Safety Standards:
Meet or exceeds OSHA, ANSI, and Canadian COHS standards
(OSHA 1910.29; OSHA 1910.28; ANSI A1264.1-2017; ANSI A14.3; Canada COHS SOR-86-304 Part II)
Safety Standards:
CE marked
Tested to the OSHA, ANSI, and Canadian COHS standards, and exceeds the loading requirement by two times (OSHA 1910.29; OSHA 1910.28; ANSI A1264.1-2017; ANSI A14.3; Canada COHS SOR-86-304 Part II)
Safety Standards:
Engineered to comply with the ladder safety gate requirements in OSHA 1910.29 and 1910.28, as well as ANSI A1264.1-2007, A14.3-2008 and MH28.3-2009.
Safety Standards:
Engineered and tested to comply with ladder safety gate requirements in OSHA 1910.28 and 1910.29, as well as ANSI A1264.1-2007 and A14.3-2008.
Options:
Optional 'no-drill' adapter brackets available if mounting to non-standard railing system.
An optional Lock-Out Kit is available for additional security to prevent unauthorized access by locking the gate so that no one can pass through.
Options:
Optional 'no-drill' adapter brackets available if mounting to non-standard railing system.
Options:
Standard railing mount or flat surface mount
Options:
Optional 'no-drill' adapter brackets available if mounting to non-standard railing system. Optional Stand-Off Mounting System available to create increased landing space for employees to transition through ladder.
Options:
Optional 'no-drill' adapter brackets available if mounting to non-standard railing system. Optional Stand-Off Mounting System available to create increased landing space for employees to transition through ladder.
Warranty:
Springs (tested to over 1 million cycles) are guaranteed for the life of the gate
Warranty:
Springs (tested to over 1 million cycles) are guaranteed for the life of the gate
Warranty:
Springs (tested to over 1 million cycles) are guaranteed for the life of the gate
EdgeHalt® Ladder Safety Gate
Fits Openings // Part Number:
15”-20” // LSG-1520
20”-30” // LSG-2030
30”-40” // LSG-3040
40”-50” // LSG-4050
Available Finishes:
Powder Coat Yellow (PCY)
Hot-Dipped Galvanized (GAL)
304 Stainless Steel Seal Welded (304SW)
Installation:
Includes standard mounting hardware for round pipe (up to 2" O.D.) or square tubing (up to 2" x 2" O.D.). Gates can also be match-drilled directly to existing wall or railing system.
Safety Standards:
Tested to the OSHA, ANSI, and Canadian COHS standards, and exceeds the loading requirement by two times (OSHA 1910.29; OSHA 1910.28; ANSI A1264.1-2017; ANSI A14.3; Canada COHS SOR-86-304 Part II)
Options:
Optional 'no-drill' adapter brackets available if mounting to non-standard railing system.
An optional Lock-Out Kit is available for additional security to prevent unauthorized access by locking the gate so that no one can pass through.
Warranty:
Springs (tested to over 1 million cycles) are guaranteed for the life of the gate
EdgeHalt® Posi-Stop Ladder Safety Gate
Fits Openings // Part Number:
Single:
15”-20” // LSGPS-1520
20”-30” // LSGPS-2030
Double:
20”-30” // LSGPSD-2030
30”-40” // LSGPSD-3040
40”-60” // LSGPSD-4060
Available Finishes:
Powder Coat Yellow (PCY)
Hot-Dipped Galvanized (GAL)
304 Stainless Steel Seal Welded (304SW)
Installation:
Includes standard mounting hardware for round pipe (up to 2" O.D.) or square tubing (up to 2" x 2" O.D.). Gates can also be match-drilled directly to existing wall or railing system.
Safety Standards:
Meet or exceeds OSHA, ANSI, and Canadian COHS standards
(OSHA 1910.29; OSHA 1910.28; ANSI A1264.1-2017; ANSI A14.3; Canada COHS SOR-86-304 Part II)
Options:
Optional 'no-drill' adapter brackets available if mounting to non-standard railing system.
Warranty:
Springs (tested to over 1 million cycles) are guaranteed for the life of the gate
EdgeHalt® Adjustable Safety Gate
Fits Openings // Part Number:
18”-36” // ASG-1836-PCY
Available Finishes:
Powder Coat Yellow (PCY)
Zinc
Installation:
Ships fully assembled, no sawing or cutting required.
Safety Standards:
CE marked
Tested to the OSHA, ANSI, and Canadian COHS standards, and exceeds the loading requirement by two times (OSHA 1910.29; OSHA 1910.28; ANSI A1264.1-2017; ANSI A14.3; Canada COHS SOR-86-304 Part II)
Options:
Standard railing mount or flat surface mount
Warranty:
Springs (tested to over 1 million cycles) are guaranteed for the life of the gate

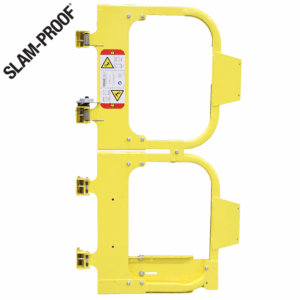

EdgeHalt® Full Height Ladder Safety Gate
Fits Openings // Part Number:
16-3/4” to 20-1/2” // LSGF-18
19-3/4” to 23-1/2” // LSGF-21
22-3/4” to 26-1/2” // LSGF-24
25-3/4” to 29-1/2” // LSGF-27
28-3/4” to 32-1/2” // LSGF-30
31-3/4” to 35-1/2” // LSGF-33
34-3/4” to 38-1/2” // LSGF-36
Available Finishes:
Powder Coat Yellow (PCY)
Hot-Dipped Galvanized (GAL)
304 Stainless Steel (304)
Installation:
Ships fully assembled, including standard mounting hardware for round pipe (up to 2" O.D.) or square tubing (up to 1.5" x 1.5" O.D.). Gates can also be match-drilled directly to existing wall or railing system.
Safety Standards:
Engineered to comply with the ladder safety gate requirements in OSHA 1910.29 and 1910.28, as well as ANSI A1264.1-2007, A14.3-2008 and MH28.3-2009.
Options:
Optional 'no-drill' adapter brackets available if mounting to non-standard railing system. Optional Stand-Off Mounting System available to create increased landing space for employees to transition through ladder.

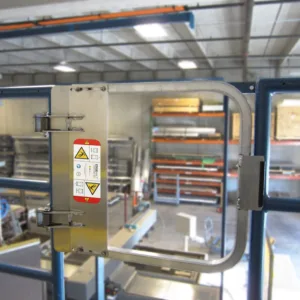

EdgeHalt® Aluminum Ladder Safety Gate
Fits Openings // Part Number:
16-3/4” to 20-1/2” // LSG-18
19-3/4” to 23-1/2” // LSG-21
22-3/4” to 26-1/2” // LSG-24
25-3/4” to 29-1/2” // LSG-27
28-3/4” to 32-1/2” // LSG-30
31-3/4” to 35-1/2” // LSG-33
34-3/4” to 38-1/2” // LSG-36
Available Finishes:
Aluminum
Installation:
Ships fully assembled, including standard mounting hardware for round pipe (up to 2" O.D.) or square tubing (up to 1.5" x 1.5" O.D.). Gates can also be match-drilled directly to existing wall or railing system.
Safety Standards:
Engineered and tested to comply with ladder safety gate requirements in OSHA 1910.28 and 1910.29, as well as ANSI A1264.1-2007 and A14.3-2008.
Options:
Optional 'no-drill' adapter brackets available if mounting to non-standard railing system. Optional Stand-Off Mounting System available to create increased landing space for employees to transition through ladder.
