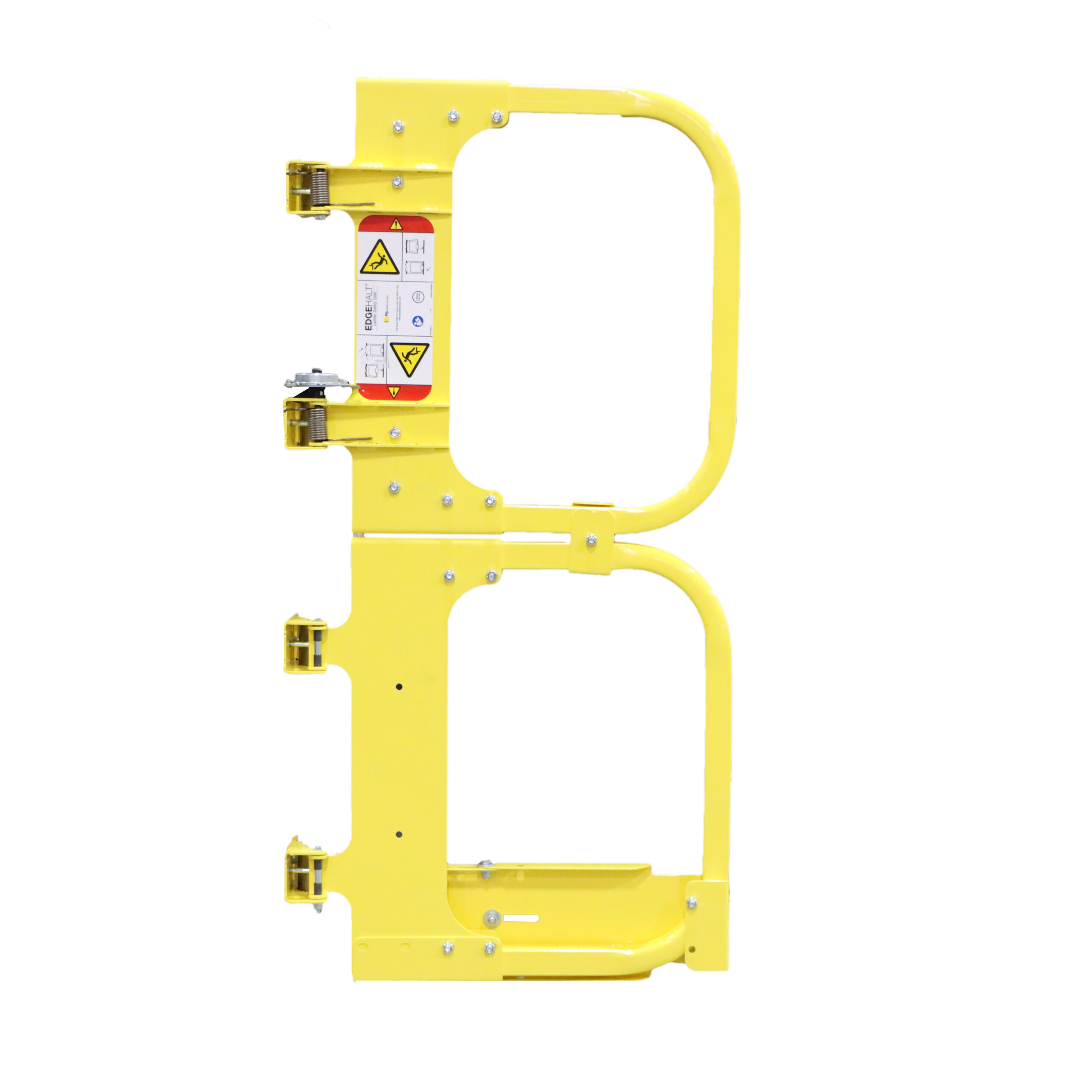

EdgeHalt® Full Height Posi-Stop Ladder Safety Gate
LSGPSF

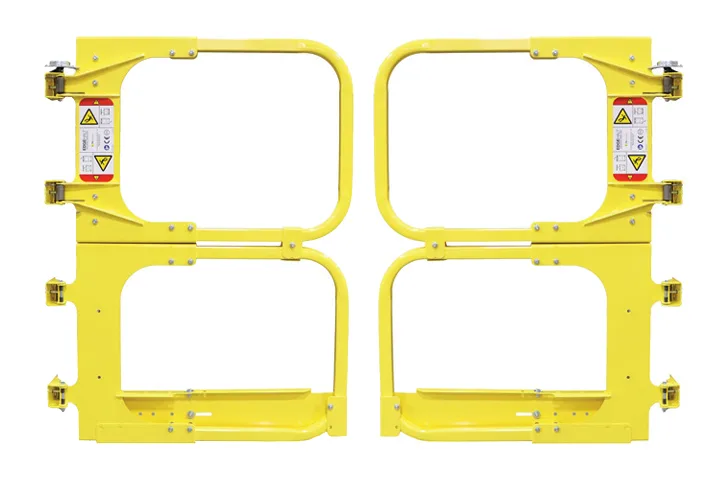

The new, adjustable Slam-Proof® EdgeHalt® Posi-Stop Full Height Ladder Safety Gate is the perfect solution when you don’t have a regular railing or surface for a strike plate to stop or rest in place against. Unlike our other gates that require a strike plate or a post on the opposite side for support, the patent-pending Posi-Stop uses an engineered internal stop built into the hinge-side structure. This eliminates the need for any hardware or structure on the far side of the opening – the gate itself provides the stopping force needed for fall protection. This design also makes it ideal for large openings: You can install two Posi-Stop gates, one on each side, to form a double gate, covering wider areas while still providing the same level of fall protection (without needing anything in the middle to support or stop the gates).
Available in three finishes: Powder Coat Yellow (PCY), Hot Dipped Galvanized (GAL) and 304 Stainless Steel (SS).
Engineered and tested to meet or exceed OSHA, ANSI and Canadian COHS standards (OSHA 1910.29; OSHA 1910.28; ANSI A1264.1-2017; ANSI A14.3; Canada COHS SOR-86-304 Part II)
In addition, be sure to check out our optional safety gate accessories:
- Adapter Brackets – Provides flexibility for customers with unique mounting needs
- Stand-Off Mounting System – Creates increased platform space on the mezzanine edge for personnel to utilize when transitioning through the gate
To download specifications and product information, see the black tabs located in the upper right corner (desktop) or bottom (mobile) of your screen.
EDGEHALT FULL HEIGHT POSI-STOP LADDER SAFETY GATE BENEFITS
- Slam-Proof® Technology – A unique damping system that provides safety to the operator while the gate is closing. It controls speed, reduces noise and adds life to the gate (ready for future OSHA standards regarding slamming).
- Works Without A Strike Plate – Perfect for applications without a regular railing or surface for a strike plate to stop or rest in place against.
- Meets Or Exceeds OSHA / ANSI / Canadian COHS Standards – Proven safety for your team (OSHA 1910.29; OSHA 1910.28; ANSI A1264.1-2017; ANSI A14.3; Canadian COHS SOR-86-304 Part II).
- Adjustable For Easy Installation – 10″ of adjustability make it simpler to install in different openings around your facility.
- Springs Guaranteed For Life Of Gate – Tested to exceed more than one million cycles, you can feel good that the springs on your gate will likely outlast everything around them.
- Simple installation – The simple design with Quick Start Guide makes it easy to install in minutes. If mounting to angle iron, flat bar or nonstandard railing, gate bolts directly to railing (hardware not included) or by purchasing and using a no-drill adapter bracket kit. Call PS Safety Access™ for details.
- Always In Place – Self-closing to protect employees from dangerous falls.
- Available In 3 Finishes – Powder Coat Yellow (PCY), Hot-Dipped Galvanized (GAL) and 304 Stainless Steel Seal Welded (304SW).
- Save On Shipping – Its unique gate design allows for a compact shipping box, reducing shipping costs by an average of $8-$18+ per gate.
Frequently Asked Questions
Yes, our EdgeHalt Ladder Safety Gates are self-closing and always in place. Our product has been redesigned with innovative Slam-Proof® technology that closes each gate in a quiet and controlled manner, extending the life of the gate.
No, adapter brackets are optional. EdgeHalt Ladder Safety Gates ship fully assembled, including standard mounting hardware for round pipe (up to 2″ O.D.) and square tubing (up to 2″ x 2″ O.D.). If mounting to angle iron, flat bar or nonstandard railing, gate bolts directly to railing/wall (hardware not included) or by purchasing and using a no-drill adapter bracket kit.
EdgeHalt Ladder Safety Gates are typically in stock. Please contact PS Safety Access for exact lead time.
Engineered and tested to meet or exceed OSHA / ANSI / Canadian COHS Standards – OSHA 1910.29; OSHA 1910.28; ANSI A1264.1-2017; ANSI A14.3; Canadian COHS SOR-86-304 Part II.
Click here to download the EdgeHalt Full Height Ladder Safety Gate Operations and Maintenance Manual (Quick Start Installation Guide).
